Sterilization device | Autoclave
Laboklav ECO Wastewater
FAST STERILIZATION OF LARGE VOLUMES OF LIQUIDS
The destruction sterilization of large liquid containers often results in long cycle times due to the volume and the specific thermal properties of the liquids. To ensure complete elimination of all microorganisms, the sterilization temperature must be uniformly reached throughout the container and maintained for a sufficient duration. Factors such as the thermal conductivity of the container material, the heat capacity of the liquid, and its evaporation properties influence the process. Additionally, the homogeneity of the liquid and potential barriers created by the container material play a role, potentially extending the sterilization cycle.
The Laboklav ECO Wastewater series laboratory sterilizers are equipped with a sterilization chamber with a volume of approximately 140 liters, designed for the sterilization of liquid media such as cell cultures or wastewater. In exceptional cases, other items can also be sterilized, such as instruments or materials intended for non-medical purposes. (In such cases, a technician from SHP Steriltechnik AG must be consulted beforehand.)

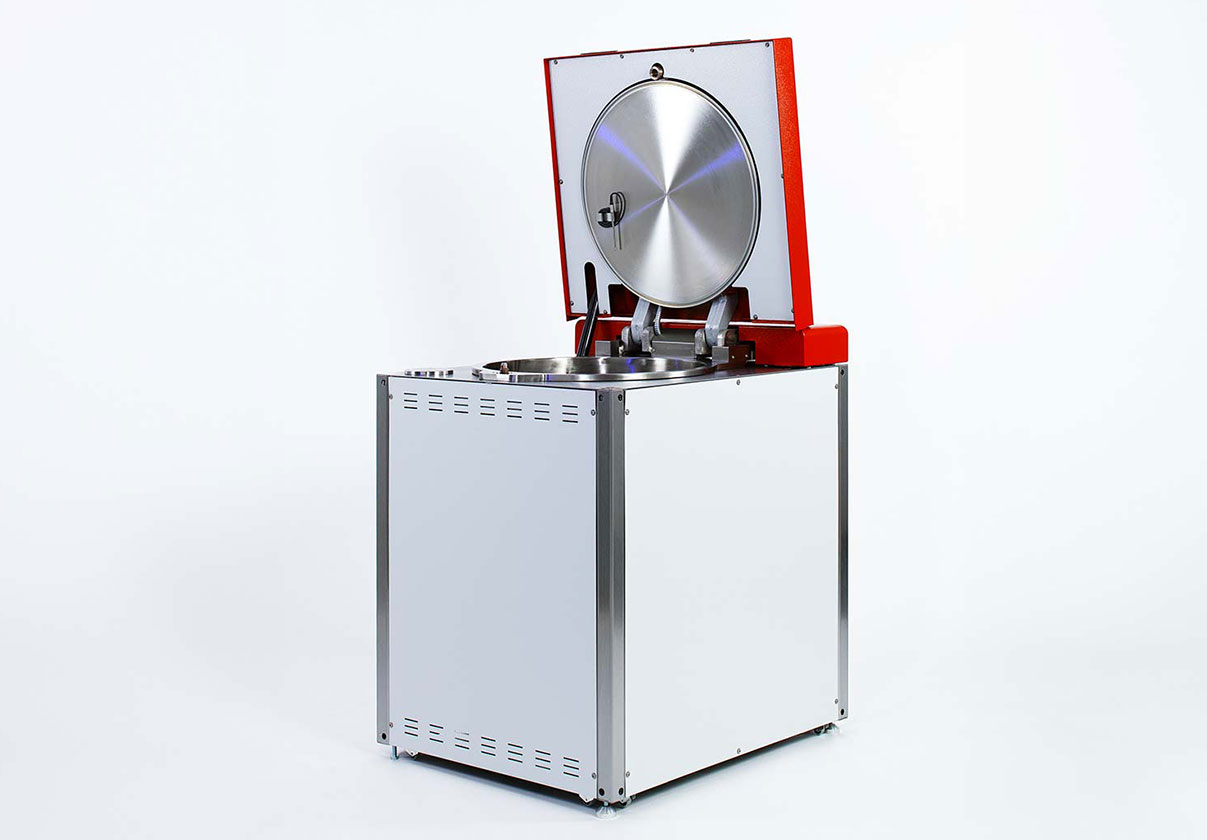

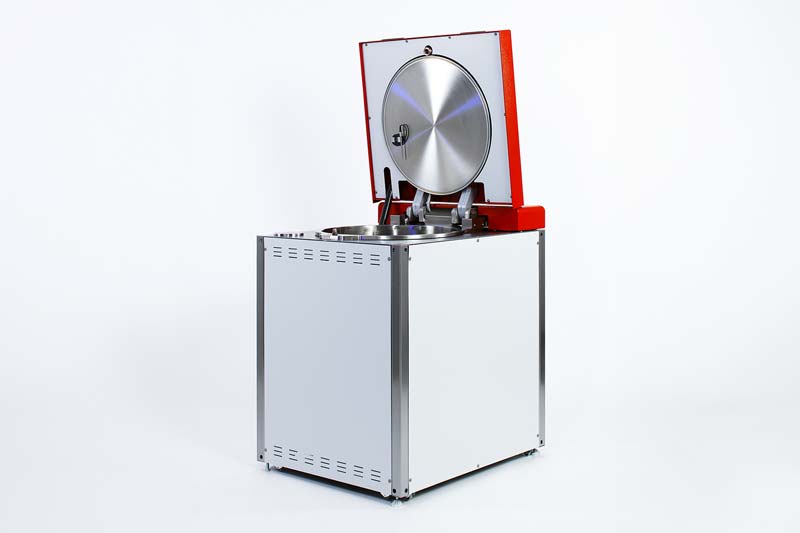

Laboklav ECO Wastewater
powerful and reliable
The Laboklav ECO Wastewater was specifically designed for the rapid sterilization of large volumes of liquids. It allows direct filling of the chamber with up to 100 liters of liquid media, which are fully sterilized in approximately 4 hours.
Once the chamber is filled exclusively with liquid media, the chamber lid is motorized and sealed. The liquid is then heated to the required sterilization temperature and maintained for a set duration. After the sterilization phase is complete, the chamber is automatically drained using compressed air. To protect the disposal lines from overheating, tempered tap water is mixed in during the process.
up to 100 l
equipped for the sterilization of large volumes of liquids
direct filling of the chamber with up to 100 liters of liquid to be sterilized, only aqueous solutions
spacesaving
universally installable
Dimensions for installing:
B x H x D:
840 x 965 x 700 mm
(vertical autoclave)
lid opening adjustable for flexible configuration
efficient & durable
steam generation based on the principle of direct boiler heating
Power: 6 kW
heating elements are not submerged in water (thereby extending their lifespan)
as standard
integrated dot matrix printer
exhaust air filtration
automatic emptying of chamber by injection of compressed air
- Power 6 kW
- Heating elements are not submerged in water, thereby extending their lifespan
The high-performance steam generation is achieved through heating elements that are directly in contact with the chamber floor. The sterilization medium itself is used for steam generation. Both the heating elements and the chamber are protected against dry running by over-temperature switches.
Product features and technical specifications
CUSTOMER SERVICE is a top priority for us.
Our service network ensures short response times and competent service technicians with many years of experience in steam sterilization. Our fair prices and the service-friendly design of our devices keep costs low. We take care of your equipment.
Optional for the Laboklav ECO Wastewater
SegoSoft
SegoSoft - the fully automated, digital batch and process documentation for your sterilizers, thermal disinfectors, and sealing devices.
baskets
Grid baskets in various heights, see accessories.
